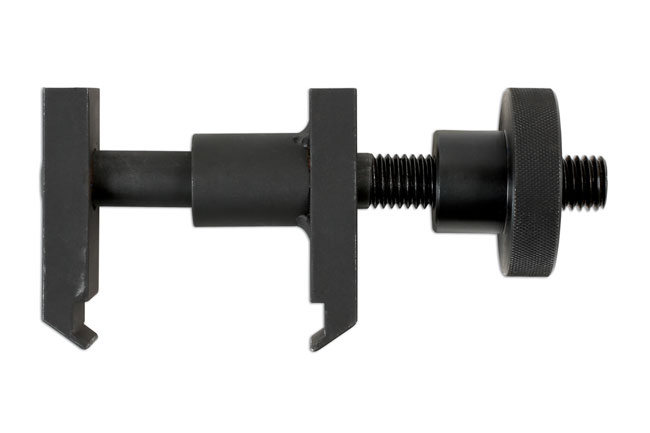

Split Gear Alignment Tool - for Vauxhall, BMW

Article No LA 7067

Modern engines that use gear drives to drive their camshafts, balance shaft etc. often have a sprung loaded split gear in the gear train. These split gears are used to reduce gear chatter and noise. However, when it comes to service and repair these split gears can often make disassembly and assembly of the drive train difficult. This tool is designed to clamp onto the gear and hold the 2 gear halves in alignment so making the assembly and disassembly easier. Tested and proven on Vauxhall 1.3 CDTi (B13) diesel engine camshafts and BMW B37 1.5L diesel balance shaft gears.

  • Applications include: Vauxhall, Opel Corsa E, 1.3 diesel (from 2015). Engine codes: LKU/B13DTE, LKU/B13DTR and LKV/B13DTC.
  • Applications: BMW 1.5 Diesel 1 Series (from 2015), 2 series (from 2014) and X1 (from 2015); also BMW MINI One (from 2014). Engine codes: B37 C15A and B37 D15A.
  • Equivalent to OEM EN-50509, 11 5 370 and 654 589 00 31 00.
  • Vanos checking and primary chain pre-tension tools.
  • Made in Sheffield.
Article No LA 7067
Description Split Gear Alignment Tool - for Vauxhall, BMW
