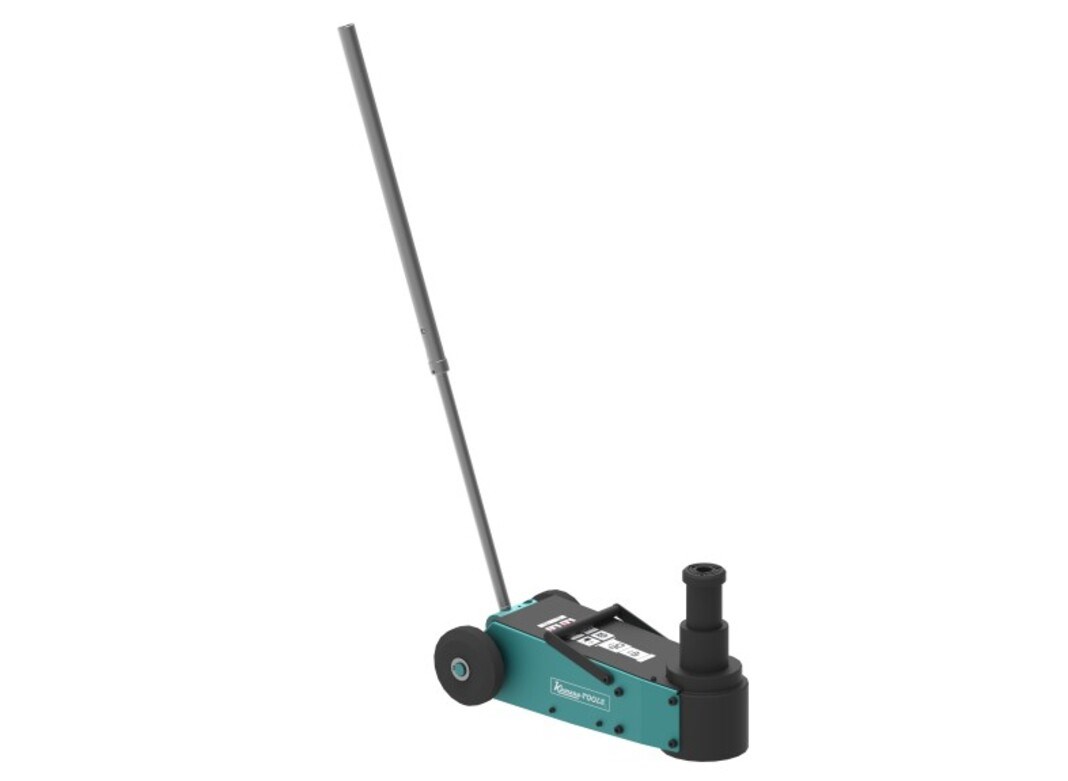

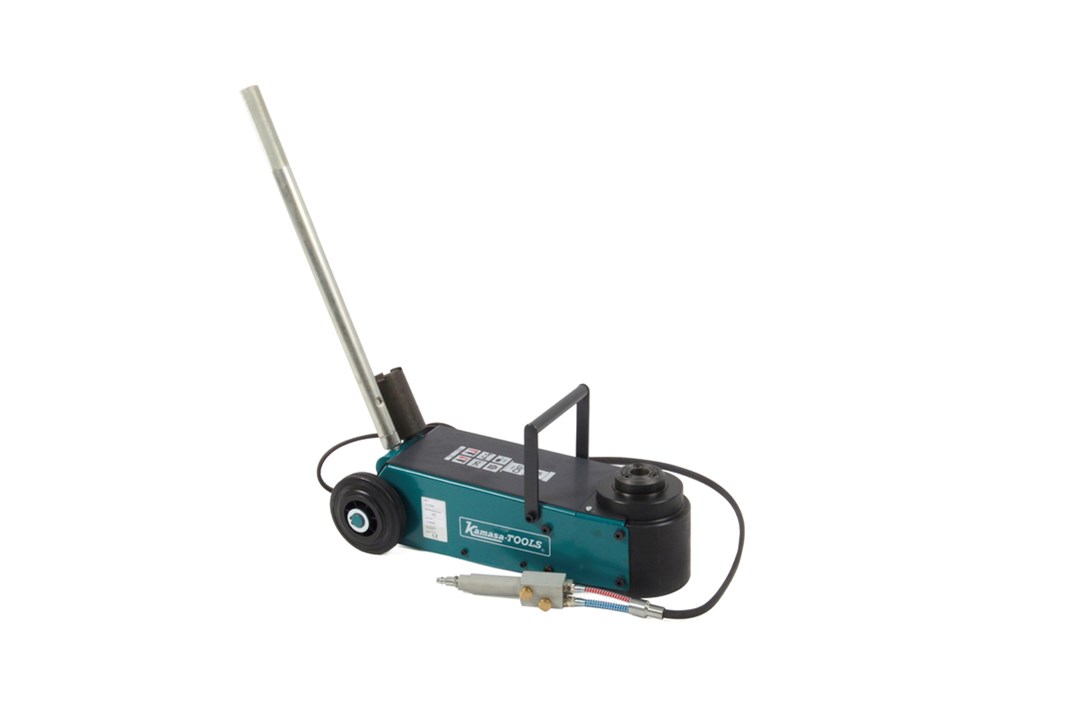

Garage jack, 15 ton, air/hydraulic

Article No K 21270 What do the symbols mean?

An easily operated and safe air/hydraulic jack for heavy lifting in the workshop.

Two stage hydraulic unit, 30 and 15 tons, respectively, with LCS, Lowering Control System, allowing the load to be lowered in a controlled fashion. Other standard safety features include overload valve, reduction of the stroke length and dead man's switch. The pistons are made of high-alloy special steel for extra durability and are treated with rust protection. The handle has three working positions and can be fully folded for transportation or storage

The jack is constructed using a modular system whereby a hydraulic unit, valve casing, release valve and pneumatic motor are easy to service and are also available as separate spare parts.

Article No K 21270
Weight kg 43,5

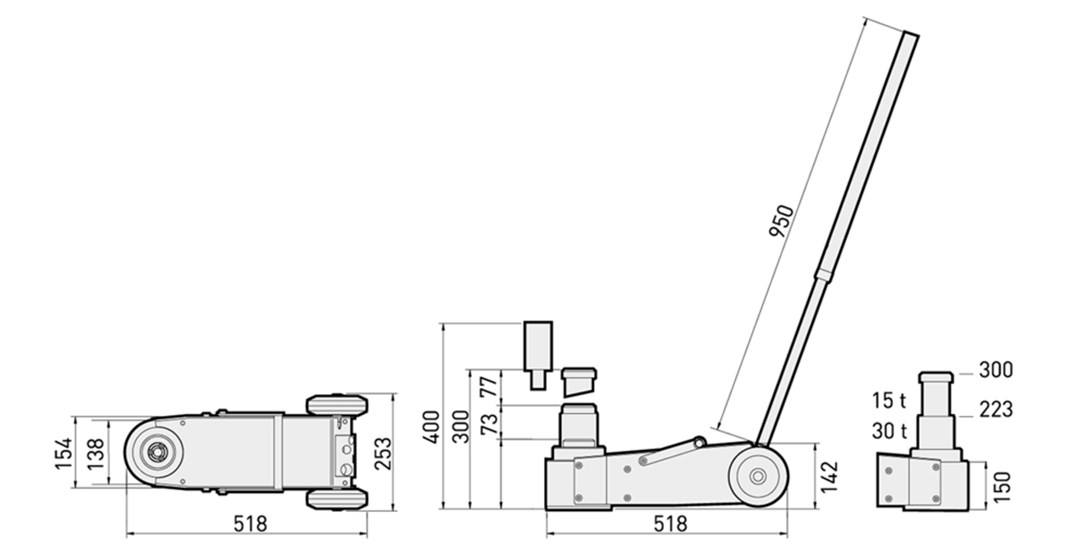

Lift height mm 150-400

Download

Product document Product document Product document

Spare parts
