Engine support, universal

Article No K 11300

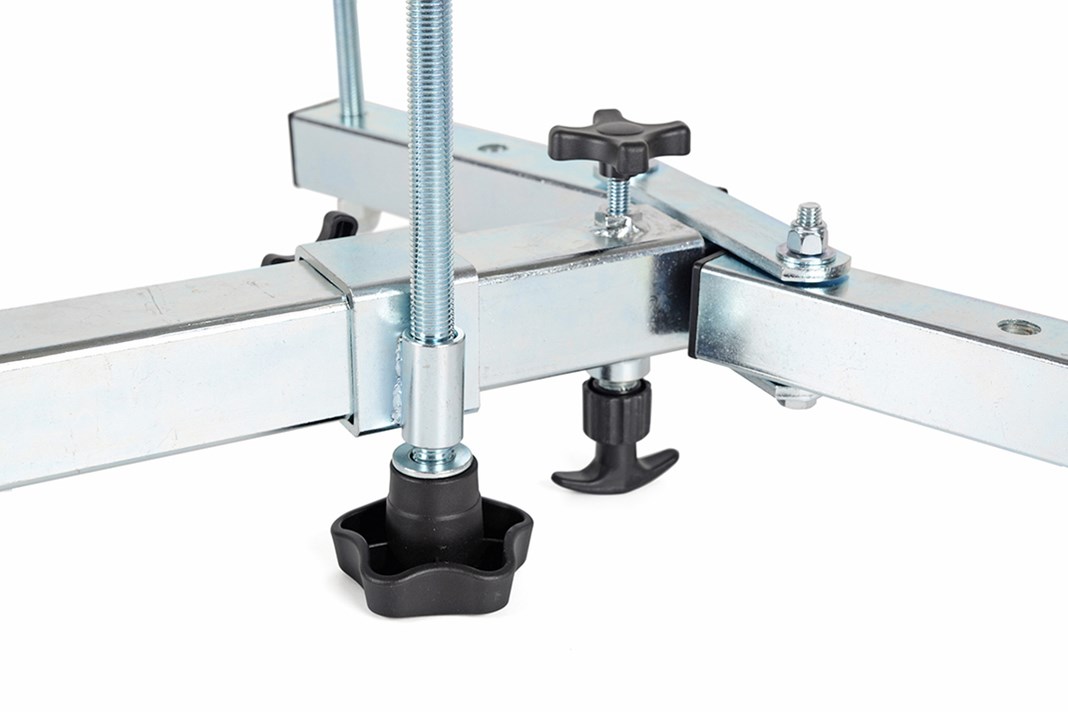

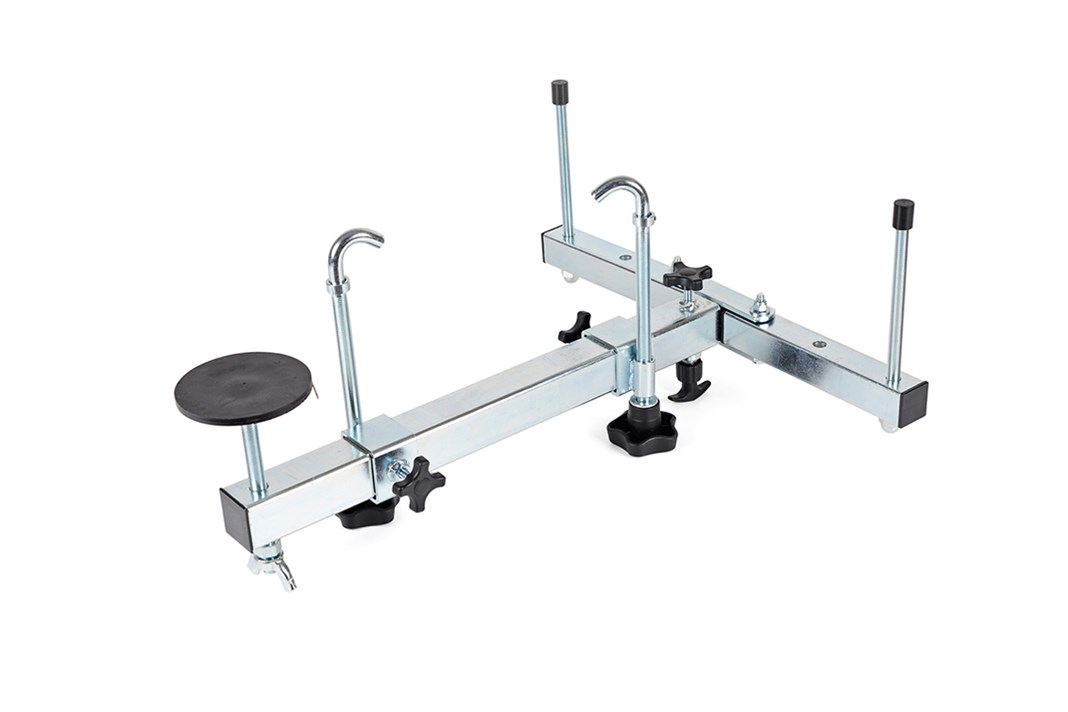

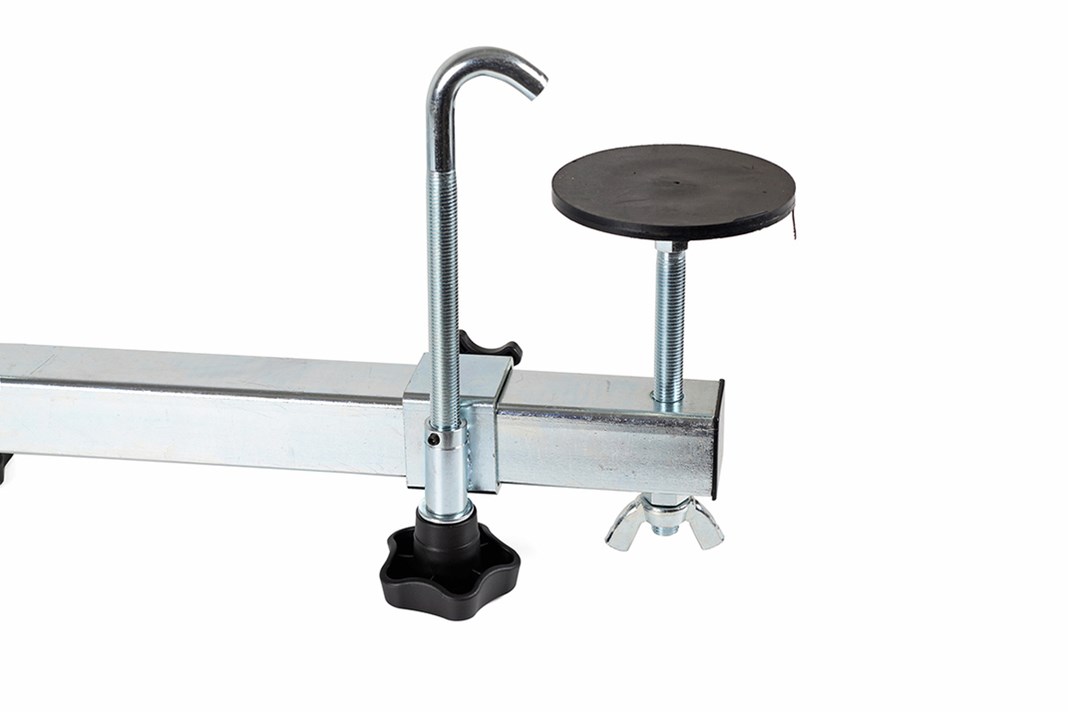

This engine support has been developed to eliminate the need for a floor-based lift when temporarily moving the engine and/or gearbox to replace the cam belt or clutch, for example. Operations are easier thanks to improved accessibility and more freedom to raise and lower the vehicle on the lift. The support is universal, but is primarily intended for vehicles with transverse engines. The length of the support, the position of the fastening hooks, and the angle, position and height of the support legs are adjustable, making this a very versatile tool.

Article No K 11300
Description Engine support, universal
Weight kg 9.9
Max. load 400
Max. length mm 970
Min. length mm 640
Adjustable fastening hooks and engine support plate 200 mm
Width between rear support points 300 and 600 mm
