Hydraulic cylinder, 17 tons

Article No K 22500 What do the symbols mean?

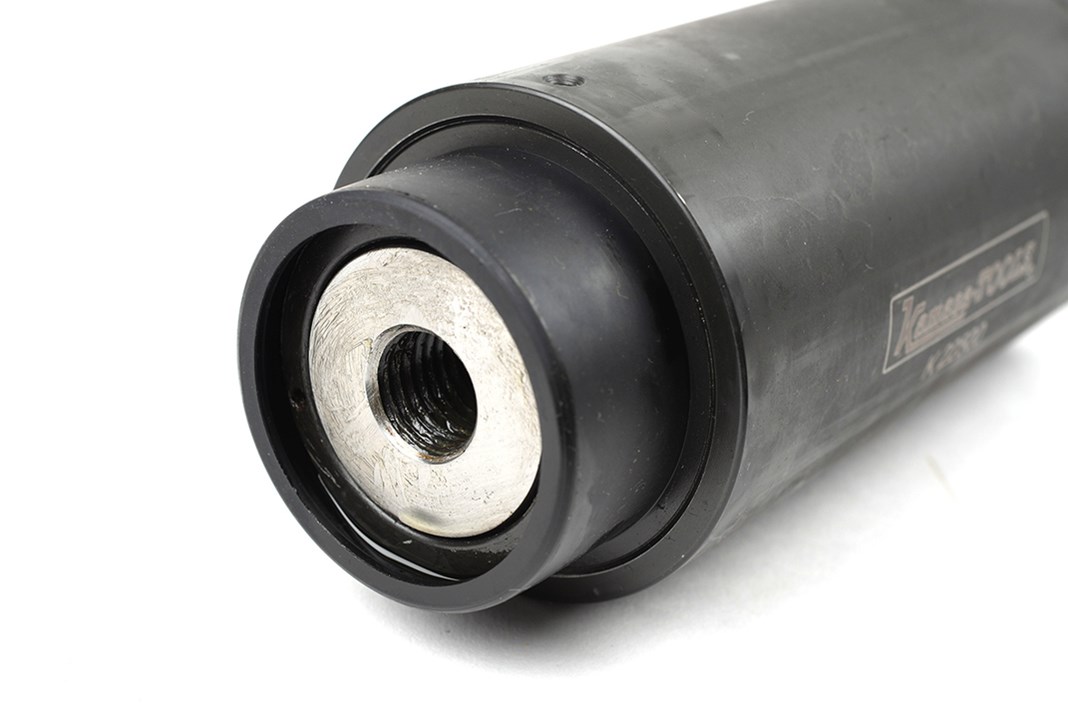

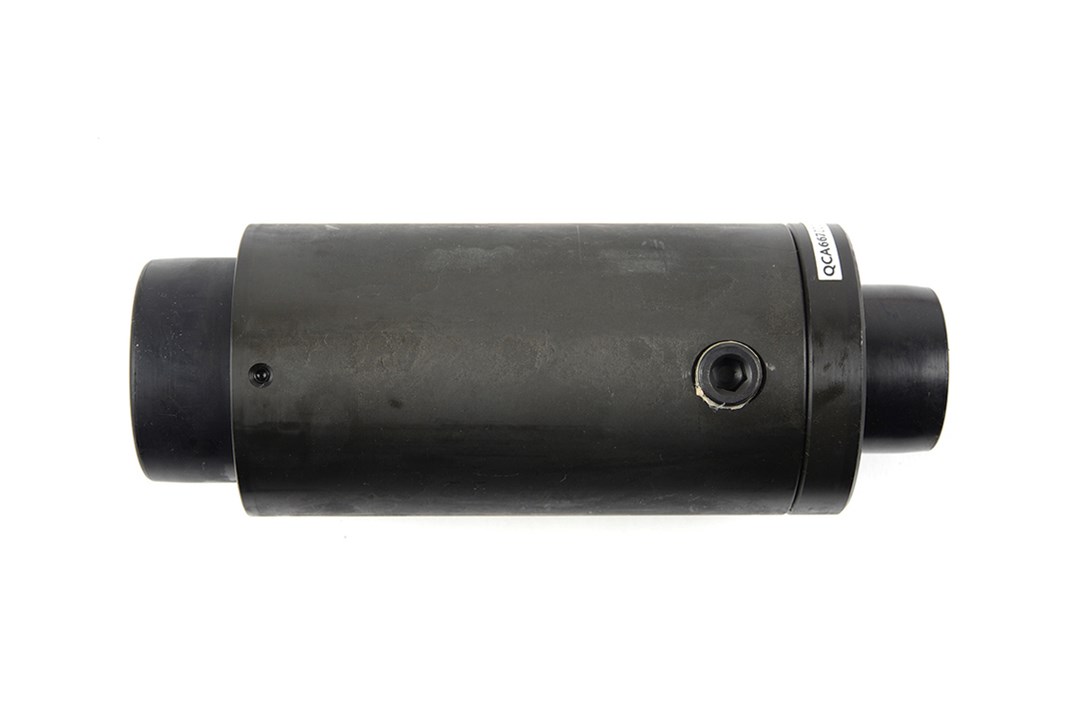

Hydraulic cylinder for removing and fitting wheel bearings, drive shafts, wheel hubs, bushings, etc. The hollow piston cylinder works with press as well as pull spindles, and can be combined with different spindles, adapters and sockets. Used in combination with the hydraulic foot pump K 22501. The cylinder comes with an adapter and a hose connection.

Article No K 22500
Description Hydraulic cylinder, 17 tons
Capacity ton 17
Stroke length mm 45
Weight kg 5.1
Inner piston thread M20 x 2.5
Outer thread on pulling side M42 x 2
Outer thread on pushing side 2 1/4 - 14 UNS
Length with retracted piston 202 mm

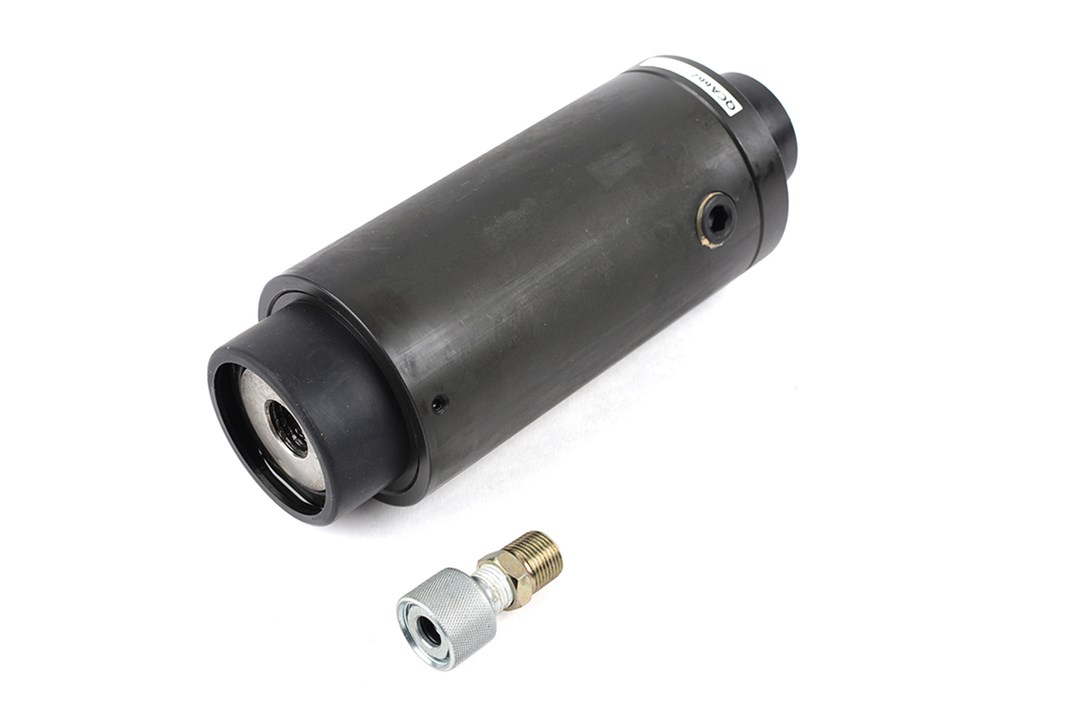

Hydraulic cylinder, 17 ton
Adapter, 3/8" x 1/4"
Hose connection, 1/4"
